Working with relational fields inside query loops

Learn how to use relational fields in Bricks loop

PreviousWorking with Slider (Nestable) and Gallery fieldNextAdditional options

Last updated 9 months ago

The relational fields can be used in the Brick builder query loops.

Unidirectional relations

First of all, you need to .

Now, suppose you want to loop the posts belonging to a certain Movie in a unidirectional relation.

Inside the Movie single or archive template you need to set a query loop using a custom PHP code:

The code will be something like this:

// The relational field. Follow this syntax: {cf_box_field}
$postIds = '{cf_m_rel}';
$postIds = explode(",", $postIds);

return [
  'post_type' => 'post', // or change if it is not the right post type
  'posts_per_page' => -1, // to display all the posts
  'post__in' => $postIds,
];

The variable $postIds represents the post IDs to be queried in the loop.

Bidirectional relations

Let's see an example.

First of all, suppose you have a CPT called movie and another one called post.

Setup a one-one bidirectional relation between.

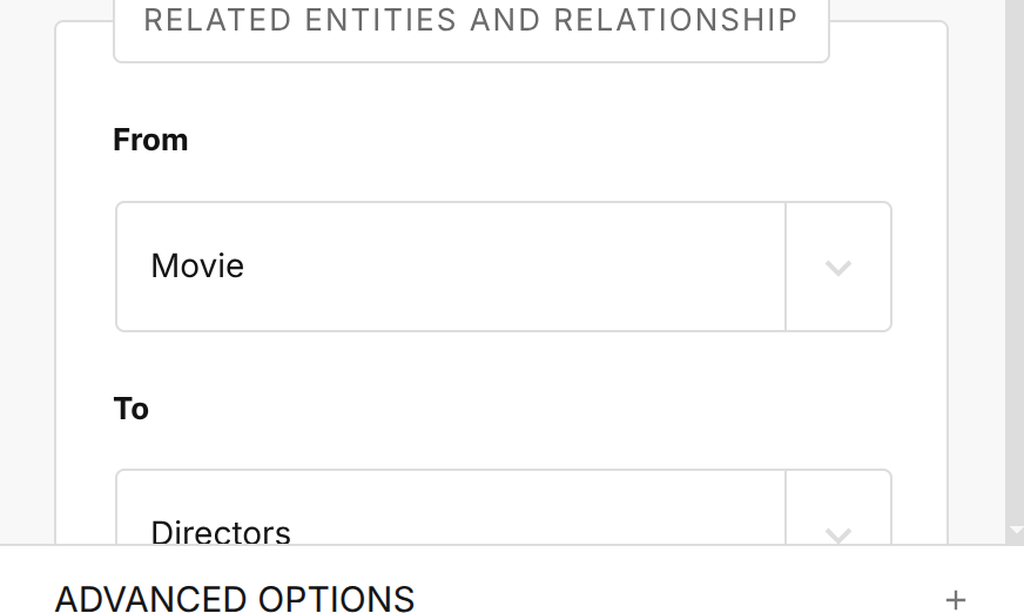

You'll have something like this:

Now, move to Bricks editor.

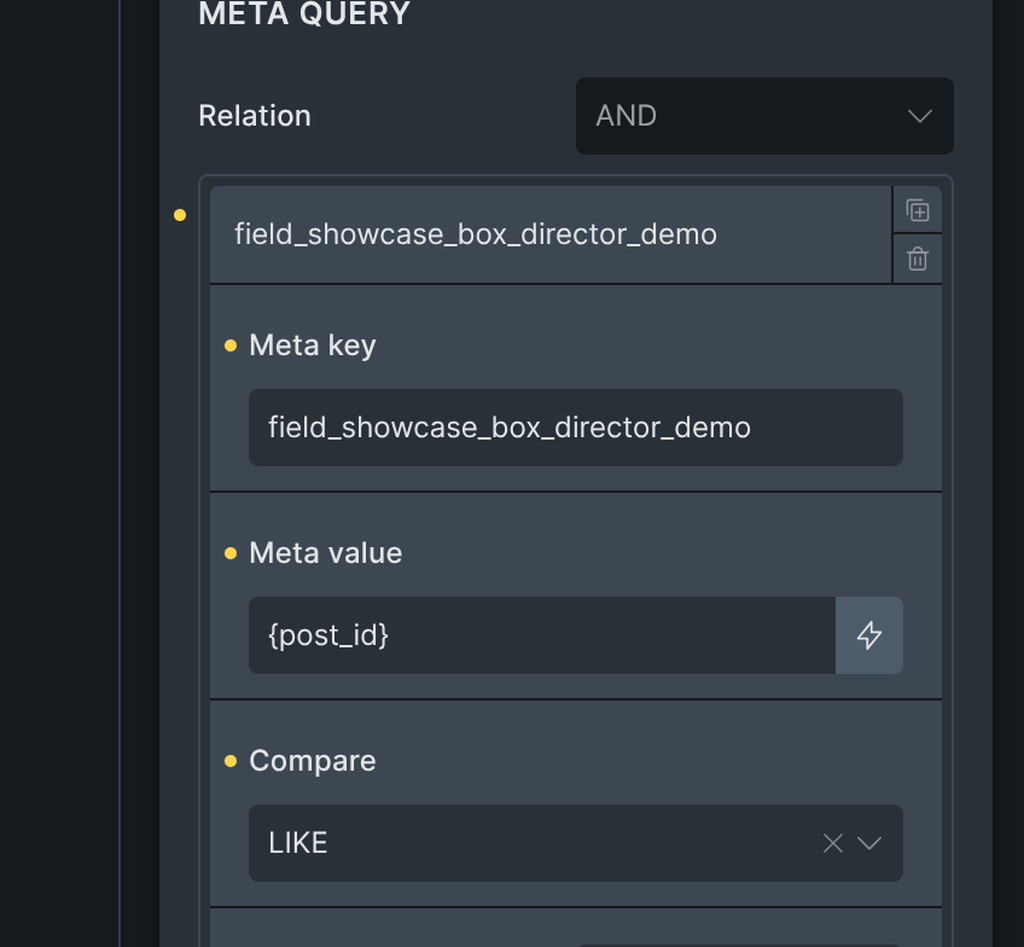

To fetch all the posts from the above relational field value, you need to set a query loop adding a custom meta query:

  • meta keys: the name of the movie meta field

  • value: {post_id}

  • operator: LIKE

In this case, only one post will be fetched, since the relational is one-one.

enable code execution in Bricks
